Designing Tactful Objects for Sensitive Settings: A Case Study on Families Dealing with Childhood Cancer

Patrizia D’Olivo 1,*, Kelly L. A. van Bindsbergen 2,3, Jaap Huisman 2, Martha A. Grootenhuis 2,3, and Marco C. Rozendaal 1

1 Delft University of Technology, Delft, the Netherlands
2 Princess Máxima Center for Pediatric Oncology, Utrecht, the Netherlands
3 Emma Children’s Hospital, Amsterdam UMC, Amsterdam, the Netherlands

In the field of Human-Computer Interaction (HCI), there is an increasing interest in designing for well-being. With this contribution, we introduce Tactful Objects as a design perspective on interactive artifacts that empower people in sensitive settings. We explore the concept of tactfulness by designing two interactive artifacts addressing the needs of families dealing with childhood cancer. The first, Mr.V, is an interactive dispenser to stimulate social activities in the family. The second, AscoltaMe, is a kind of walkie-talkie to enhance communication between family members. Eight families in treatment were invited to try out one of these artifacts at home. We report on how they perceived the objects’ impact on family life, how they used and appreciated the objects and how the objects embedded at home. The findings highlight that Tactful Objects enable people to act with respect for their vulnerabilities and circumstances by establishing partnerships and collaborations that are inviting and appropriate for the setting in which they are embedded. We then reflect on the contribution of the work for research in healthcare and design for other sensitive settings. We conclude by presenting the limitations of the study and provide directions for future work.

Keywords – Tactful Objects, Tactfulness, Sensitive Settings, Families, Childhood Cancer, Human-Computer Interaction.

Relevance to Design Practice – In this paper, we introduce Tactful Objects as a design perspective on interactive artifacts that empower people in sensitive settings. By investigating the concept of tactfulness in the context of childhood cancer, we have articulated the design qualities of such objects and highlighted their value when designing for sensitive settings.

Citation: D’Olivo, P., van Bindsbergen, K. L. A., Huisman, J., Grootenhuis, M. A., & Rozendaal, M. C. (2020). Designing tactful objects for sensitive settings: A case study on families dealing with childhood cancer. International Journal of Design, 14(2), 103-124.

Received December 20, 2018; Accepted June 25, 2020; Published August 31, 2020.

Copyright: © 2020 D’Olivo, van Bindsbergen, Huisman, Grootenhuis, & Rozendaal. Copyright for this article is retained by the authors, with first publication rights granted to the International Journal of Design. All journal content is open-accessed and allowed to be shared and adapted in accordance with the Creative Commons Attribution-NonCommercial 4.0 International (CC BY-NC 4.0) License.

*Corresponding Author: p.dolivo@tudelft.nl

Patrizia D’Olivo holds a MSc degree in Design & Engineering from Politecnico di Milano. She was trained as a product designer and material selection specialist. As a PhD candidate in Industrial Design at the Delft University of Technology, she uses a Research Through Design approach to explore how interactive objects and technologies can be tactfully attuned to the needs of users in sensitive settings; and designed to empower them in dealing with disruptive life events.

Kelly L. A. van Bindsbergen holds a MSc degree in research in Developmental Psychology from Utrecht University. She was trained as a researcher in the field of child development. As a PhD candidate at the Emma Children’s Hospital and the Princess Máxima Center for Pediatric Oncology, she focuses on reducing medical traumatic stress in children with cancer during their treatment by using new technologies.

Jaap Huisman is a Doctor in Clinical Psychology and until 2019 was head of the department of Psychological and Psychosocial Care at the Princess Máxima Center for Pediatric Oncology in Utrecht, the national center for pediatric oncology in the Netherlands. Besides his clinical work, he has published research in the field of pediatric oncology, child endocrinology, and neonatology.

Martha A. Grootenhuis is a Professor, head of the department of Psycho-Oncology and group leader on psychosocial research at the Princess Máxima Center for Pediatric Oncology in Utrecht, the Netherlands. She works on studies in order to identify psychosocial problems at an early age and stage, and interventions to improve psychosocial functioning and quality of life for children with cancer, chronic disease, their parents and other family members. Her research is relying on web-based applications, such as the KLIK method (www.hetklikt.nu), designed to systematically track the quality of life of children.

Marco C. Rozendaal is an Assistant Professor of Interaction Design at Delft University of Technology. He has a background in media technology and the arts. His work explores new interaction design paradigms engendered by emerging technologies to understand their social opportunities and ethical implications. Marco is currently investigating new interaction styles and paradigms in relation to smart networked products.

Introduction

Childhood cancer is an example of a disruptive life event (Massimi et al., 2012), such that the everyday life of families dealing with childhood cancer becomes a sensitive setting to design for (Davis & Waycott, 2015). Childhood cancer generates social, physical and emotional challenges that significantly impact the development of the child (Li et al., 2013) and put stress on interpersonal family relationships (Dixon-Woods et al., 2001). Current research in pediatric cancer care highlights the extreme importance of enhancing the well-being of the entire family during the treatment; and of promoting interventions to help both child and family members in coping to decrease distress (Haverman et al., 2011; Marsac et al., 2012; Moerman et al., 2019; Nijhof et al., 2018). In addition, studies in Design and “Sensitive” HCI (Waycott et al., 2015), have reported how interactive artifacts can be helpful in moments of crisis (Liu er al., 2015) because they can facilitate activities, support everyday routines or encourage new ones (D’Alessandro & Dosa, 2001; Kehr et al., 2012). While stimulating changes (Ryan & Deci, 2000) such artifacts may help in re-establish the normality that got impacted by disruptive life events (Patterson et al., 2004). In other words, they can help families to recreate the combination of spaces, habits, memories (Orth et al., 2018) that support their lifestyle (Massimi et al., 2012).

Developing interactive artifacts for people dealing with crises requires tact in order to account for vulnerabilities and to avoid overwhelming the users (Cheverst et al., 2001; Crabtree et al., 2003; Massimi et al., 2010; Mori et al., 2013; Vines et al., 2014). We advance tactfulness as a design quality to attune the objects’ meaning, expressivity and embodiment to the needs of people in sensitive settings. We have explored this quality in the context of childhood cancer to help shape in appropriate and sensitive ways (D’Olivo et al., 2017) the material qualities (Wiberg, 2018) and temporal form (Vallgårda et al., 2015) of two interactive artifacts that we designed. As such, tactfulness was found to be useful in form giving practices for interaction design. However, in order to apply this to a broader design perspective, we need to understand how tactfully designed interactive artifacts perform in sensitive settings and how they provide empowering experiences. This is what this study aims to achieve.

The paper is organized as follows. In the Related Work section, we elaborate on childhood cancer as a sensitive setting and present some of current supportive tools in cancer supportive care. We also present design examples that illustrate tactful approaches when designing for well-being. We then explain the rationale that brought us to develop two interactive artifacts for families dealing with childhood cancer in tactful ways. Following this, we report on a study conducted with eight families with a child in treatment for cancer, that were willing to try out one of these artifacts in their homes. We report on families’ experiences and reflect on how these insights helped us to articulate the qualities of Tactful Objects. We continue by discussing the contribution of our work for research in healthcare and reflect on the value of Tactful Objects when designing for other sensitive settings. We conclude by presenting the limitations of the study and provide directions for future work.

Related Work

In the field of developmental psychology, the growth of the child is described as a process where genetic factors that govern the biological development are continuously influenced by proximal environmental stimuli (Bronfenbrenner & Morris, 1998; Canning, 2007; Goldstein, 2012; Nijhof et al., 2018). These proximal stimuli are described in Bronfenbrenner and Ceci’s bio-ecological model (1994). In this model, the family is understood as an interdependent system where each member influences the other (Minuchin, 1988). As such, the family is the most critical proximal social context influencing the optimal development of the child (Ashiabi & O’Neal, 2015; Saarni, 2011) especially in case of stressful and disruptive conditions.

Challenges in life, which generate stress and trigger profound changes, are described as disruptive life events (Massimi et al., 2012). These events, such as illness, death, divorce, and relocation, can have an impact on the individual and on the family as a whole. For instance, by influencing relationships and family coherence, the well-being of each family member can be affected (Massimi et al., 2012). Childhood cancer can be considered a disruptive life event because it significantly changes a family’s normal interactions and structures (Cox & Paley, 1997). Despite the support provided by professionals and healthcare institutions, families describe it as a long and lonely process (Patterson et al., 2004) that creates stress on relationships (Folkman et al., 1986), and generates a surreal experience (Patterson et al., 2004). The point that we would like to make here is that childhood cancer as a disruptive life event becomes a sensitive setting to design for, involving the family as a whole.

Much of the attention in psychosocial supportive care in pediatric oncology goes to preserving and fostering normality despite the many challenges and uncertainties caused by the illness. New approaches adopted during clinical interventions integrate playful activities and digital games to assess and stimulate the child’s development (Nijhof et al., 2018). Social robots have been introduced in the hospital environment to distract and interact with the children during distressing procedures (Breazeal, 2011; Dawe et al., 2019; Moerman et al., 2019). Attention to the families has been promoted with the use of new tools like the Cellie Cancer Coping Kit that uses a puppet and illustrated cards to stimulate communication between children, family members and caregivers, to promote coping and to help decrease distress (Marsac et al., 2012). Other examples implement user friendly web-based platforms to let children, sibling and parents communicate with the medical staff throughout the trajectory of treatment (Haverman et al., 2011).

Research in design (Diefenbach et al. 2017; Petermans & Cain, 2019) as well as in clinical studies (Halliday et al., 2017) points out how our feelings of well-being and happiness depend upon the activities we engage in. Artifacts and technologies are considered mediators that shape behaviors and activities, trigger reflection, awareness, and offer support in everyday routines (Dorrestijn & Verbeek, 2013; Kaptelinin & Nardi, 2006; Kehr et al., 2012; Laschke et al., 2011; Verbeek, 2005; Waelbers, 2011). However, there are some important considerations when designing such interventions in sensitive settings. For instance, technologies in domestic environments should be designed with an understanding of the family setting in their rituals and rhythms (Huisman et al., 2012; Kirk et al., 2016; Odom et al., 2014; Schatorjé & Markopoulos, 2013). Many of the activities, relationships and values in this context are idiosyncratic and highly personal (Gaver et al., 2007). A tactful approach is even more warranted when families are faced with disruptive life events and are hereby likely to become vulnerable users (Vines et al., 2014).

We draw inspiration from some design examples that illustrate tactful approaches when designing for well-being. The Cellie Cancer Coping Kit, mentioned earlier, is a good example of how to design for children with cancer as vulnerable users (Marsac et al., 2012). What we consider to be tactful is the friendly appearance of the puppet, suitable for children to hold and cuddle with, that allows it to become a companion to the child during medical procedures. Another example is the Chocolate Machine by Kehr and colleagues (2012) which is tactfully designed as a behavior change strategy by challenging a person’s self-control in a playful way. By releasing chocolate balls and counting how many times the chocolate balls are placed back in the machine without eating them, a person becomes playfully aware of the temptation. In the Ritual Machine V by Chatting and colleagues (2017) we see an example of how artifacts can be tactful when they are designed with a sensitivity for a family’s character and values. Ritual Machine V is a smart monocular toy for children to remain connected to parents who are traveling abroad. It involves a deep understanding of the needs and rhythms of the particular family for which the object is designed. The Other Brother (Helmes et al., 2009) is an example that illustrates a tactful approach in the design of a semi-autonomous object embedded in a domestic environment. It is a tangible object, resembling a small knight’s helmet, that takes pictures and records sounds of spontaneous social events taking place in the environment when it is triggered by directional sound cues. It is tactfully designed to be experienced as an intelligent character that feels part of the family. Finally, the interesting concept of the Family Circle (Schatorjé & Markopoulos, 2013) is a portable voice messaging solution system to support transitory indirect messaging in the household for working parents and teenaged children with separate routines. The design is based on the use of cylindric tokens that, if pressed, can record, store and play voice messages. This allows both flexibility and freedom in use through the house and in communicating secondary information. Families can play with color and brightness of the tokens’ integrated lights to convey visual information about the sender, intended receiver, or the nature or urgency of the message.

Design Cases

We will now describe how we have explored tactfulness when designing interactive artifacts to support families dealing with childhood cancer as a disruptive life event. The work described here is part of an ongoing Research-through-Design (RtD) project in collaboration with the Princess Máxima Center for Pediatric Oncology of Utrecht in the Netherlands (D’Olivo et al., 2017). RtD is a research approach in which design activities are an inherent part of doing research (Stappers & Giaccardi, 2017). In this project this entails developing prototypes based upon a concept or vision, which are then tested in the field to learn from it. To get acquainted with the sensitive setting under investigation, we first conducted an observation of a cancer survivors meeting (D’Olivo et al., 2018) and interviewed medical professionals working in pediatric oncology. We identified two recurrent challenges encountered by children with cancer and families during treatment: the reduced amount of quality time (Patterson et al., 2004) generated by the profound stress caused by the illness and treatment, and the inability to talk openly about one’s feelings, worries and hopes (Stiefel & Stiefel, 2006). To address these challenges we developed two prototypes in consultation with psychologists, child-life specialists, and social workers of the participating pediatric oncology center. We will first explain the two prototypes (i.e., Mr.V and AscoltaMe) and then reflect on their tactful qualities.

Mr.V

Family life is based on shared routines and collective activities. In difficult times these should be preserved to give sense of continuity and motivation. Social activities often get hampered by the distress and the demotivation generated by the long cancer treatment. Mr.V aims at stimulating social activities that the family can engage in together (Figure 1). The V in Mr.V comes from the Dutch word verrassing, which means surprise. Mr.V is an interactive dispenser resembling a gumball vending machine that provides ideas for family activities instead of gum. The ideas are notes written by the family members and contain various activities that they would like to do together. The notes are inserted into small plastic balls, which are stored in the machine. The ideas are then dispensed by the machine as surprises during the week, at unexpected moments. When Mr.V decides that it is time for a surprise, it will start shuffling the balls and making funny sounds to invite the family to check the surprise that is waiting for them. Family members can also receive a surprise on demand by pressing a button located on the backside of Mr.V.

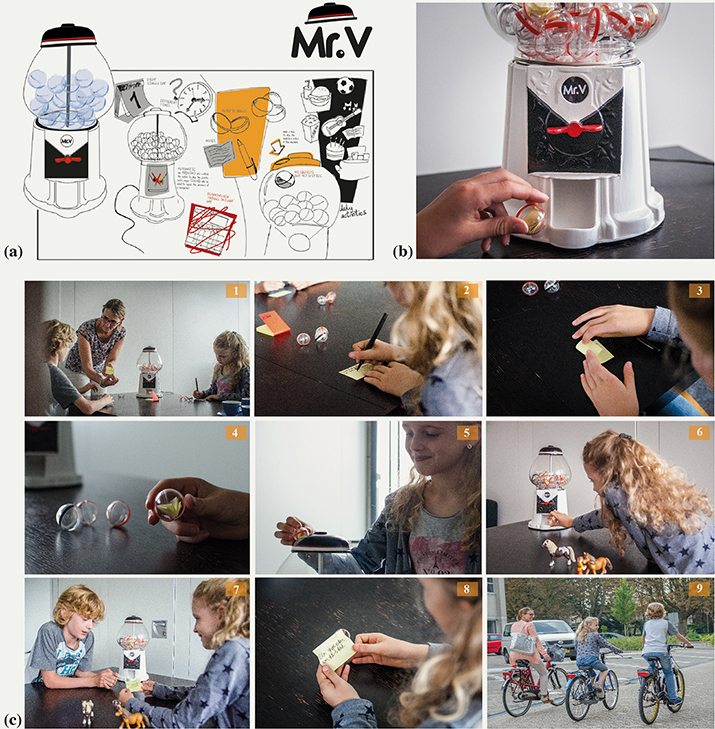

Figure 1. Mr.V, an object that aims to stimulate social activities in the family: (a) concept sketches, (b) prototype,
(c) scenario of use. The sequence of actions is indicated in numerical order. Copyright © Patrizia D’Olivo.

AscoltaMe

Sharing personal thoughts but also worries is important in order to maintain healthy connections among family members and reduce the burden of carrying something in mind. AscoltaMe (which means listen to me in Italian) encourages family members to talk about their feelings, worries, and hopes. It works like an alternative kind of walkie-talkie offering the possibility to engage in conversations in a playful way (Figure 2). Its translucent body presents two elements: a microphone and a loudspeaker connected through a flexible silicone tube. The microphone captures messages that family members want to share and holds them into the tube. Voice messages are visualized as light, which begins to fill the tube. The light then lingers in the tube and pulsates, indicating that there is a message waiting to be listened to. A red button placed on one end of the object allows to record a message and a green button placed on the other end allows to listen to the message. When someone presses the button to listen to the message, the light flows through the tube towards the loudspeaker, after which the message is played. If the message has not been completely listened to, the light will flow back into the tube, indicating that the message is still available.

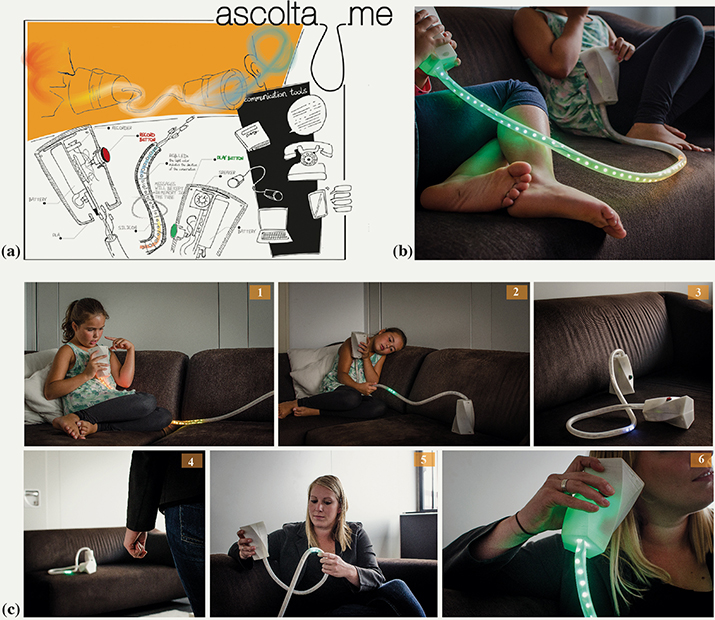

Figure 2. AscoltaMe, an object that aims at stimulating communication between family members: (a) concept sketches,
(b) prototype, (c) scenario of use. The sequence of actions is indicated in numerical order. Copyright © Patrizia D’Olivo.

Tactful Qualities

Tactfulness has been the leitmotif in the design of Mr.V and AscoltaMe as a mean to design these artifacts to be appropriate and sensitive. Although the notion of Tactful Objects had not fully crystallized yet at this stage, tactfulness was intuitively applied in crafting both artifacts.

We relied upon familiar childhood metaphors in the design of both objects to stimulate curiosity and wonder in children and parents and to provide familiar forms of interaction. For example, Mr.V resembling a gumball vending machine, which hints at childhood memories of surprises; while for AscoltaMe the metaphor of the tin-can-telephone indicates playful ways of communicating. The interaction with these objects was designed to follow the metaphor. For example, the use of Mr.V involved filling the small plastic balls with ideas written on notes, which would be dispensed automatically or by pushing a button. AscoltaMe involved speaking into one end of the phone and listening to the other end of it, as if the message were conducted by the wire in between.

We designed the expressiveness of the objects to communicate their intent clearly but subtly. Mr.V shows that it will drop a surprise by shuffling the containers around, accompanying the event with light effects coming from within the machine. When a surprise is dispensed, Mr.V makes a funny sound to signal to the family that their surprise is waiting. These effects were carefully orchestrated to be clear in their meaning and emotional tone, and to be noticeable without being disturbing. For AscoltaMe, voice messages are materialized as light. When speaking, the light begins to fill the tube and stops in the middle of the tube, where it lingers and pulsates. The temporal quality of the light effect was carefully designed to represent a voice message as an entity that flows elegantly from the recording side to the speaker-side; and being synchronized with the pressing of the recording or the listening button. AscoltaMe expresses that it wants to be listened to by the light being stuck within the tube, drawing attention in subtle ways.

We designed the embodiment of the objects to be appropriate in the family home setting considering their aesthetics and robustness. As such, both objects were designed as interactive tangible artifacts with eye for detail, use of color and use of materials. Mr.V was designed to be valued as a decorative object in the home. The iconic features of an existing gumball machine were modified and presented as human clothing. The front lever was designed as a bow-tie and the top opening to introduce the containers in the machine, as a hat. Its metal and glass materials felt sturdy and safe. AscoltaMe was designed as a mysterious yet familiar-looking object that we hoped could find its place in the home as an electronic toy. Its white translucent embodiment revealed the embedded ArduinoTM technology in suggestive ways and allowed the light to shine through. Printed plastic shells with intricate patterns formed the case for the recorder and loudspeaker that were connected by a flexible silicone tube.

Field Study

An empirical study was conducted to understand how families dealing with childhood cancer experienced these interactive artifacts in their homes. The study was designed, approved and conducted in accordance with the regulations of the Medical Ethics Committee of the University Medical Center Utrecht in the Netherlands. In consultation with the pediatric oncology center, we decided to limit the prototype testing for each family to one week in order to avoid generating stressful and overwhelming experiences. We also decided to avoid making use of design research techniques that might be experienced as intrusive (e.g., videotaping the interviews, etc.), and proposed to conduct participant recruitment and fieldwork under medical professional supervision. Throughout this contribution the word we acknowledges the collaborative effort of all the authors and research assistants from both the design and the medical domains, in framing, conducting and discussing the research1.

Participants

Eleven families with a child with cancer were approached to participate in this study. Inclusion criteria were: the child being in active treatment for cancer; not being hospitalized; between 6 and 16 years of age (10 to 16 years for Mr. V, and 6 to 10 years for AscoltaMe). Families received an information letter about the study. After one week, the families were contacted by telephone to ask whether they wanted to participate. Two families declined to participate in the study with Mr.V: because the patient was almost at the end of the treatment (n = 1) and because the family found the study too childish for their teenager to participate in (n = 1). One family declined to participate in the study with AscoltaMe because the parents did not feel the need of a new communication device at home (n = 1). In total, eight families (72.7%) were included and written consent was obtained from all family members (N = 33; nchildren = 8, nsiblings = 9, nparents = 16). Once enrolled, two families could not continue the study with AscoltaMe because the child’s physical condition worsened throughout the week (n = 2). Family demographic characteristics divided according to the artifact used are shown in Table 1.

Procedure

The study consisted of three phases. In the introduction phase, either Mr.V or AscoltaMe was presented to the families at their home or at the hospital. Instructions about the main functions of the artifacts were given, as well as a user manual and a diary (Figure 3). Families were invited to try them out and ask questions, which took about 15-30 minutes. Then during the use phase, families were asked to keep the artifacts in their homes for at least one week, and to take notes in a diary about their daily use. In the concluding evaluation phase, families were interviewed either at home or at the hospital and filled out a questionnaire. This last phase took about 60-75 minutes.

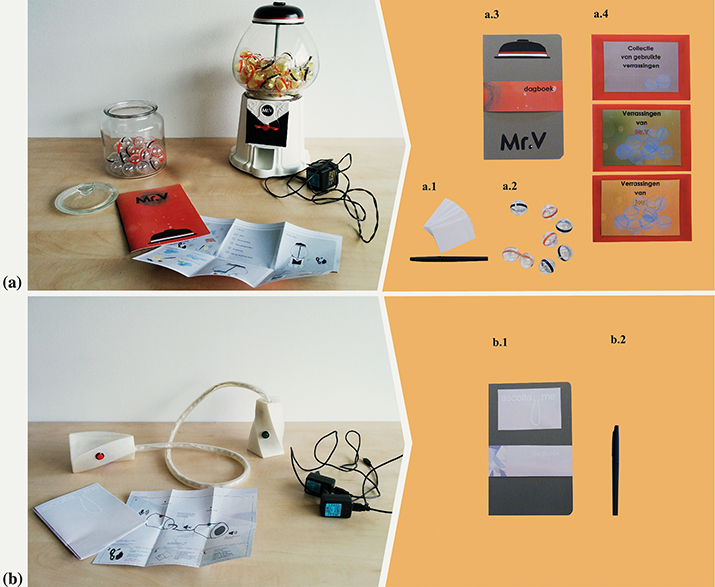

Figure 3. Overview of the materials provided to the participants: (a) Mr.V with surprise containers, power cable and user manual (a.1 notes papers and marker; a.2 plastic containers; a.3 diary; a.4 envelopes to collect used surprises, surprises suggested by Mr.V – see examples in Appendix 1- and empty notes papers), (b) AscoltaMe with power cable and user manual (b.1 diary; b.2 marker). Copyright © Patrizia D’Olivo.

Measures

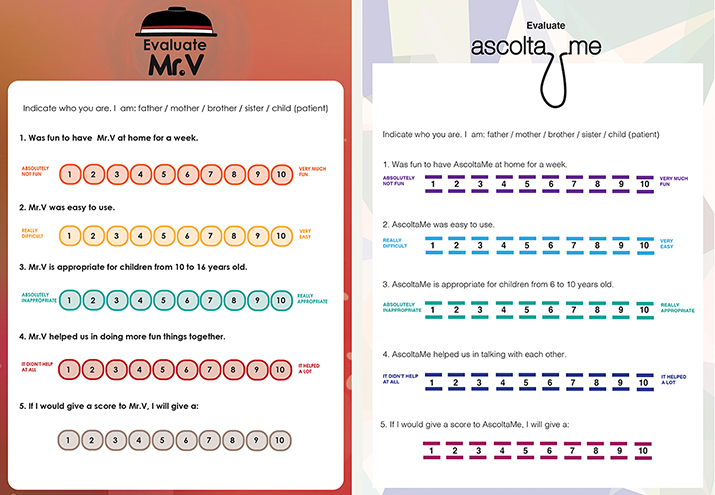

Different types of measures were used. Families were given a diary (Figure 4) in which they could take notes of what happened each day when using the artifact (e.g., whether they used it, who used it and what happened). For the families using Mr.V, the diary included an extra page in which families could set rules for the family activities they could consider (e.g., rules concerning the location, duration, and costs of the activities) (see Appendix 2 for details). Secondly, families were invited to take pictures and/or videos when using the artifacts, and shared them with the researchers through an encrypted instant messaging chat on WhatsAppTM. Thirdly, a semi-structured interview was performed after the testing week, asking participants to detail their experiences. We asked how/whether they felt the objects made an impact on family life, the ways in which they used and appreciated the objects, and how they perceived the objects to embed into their home context (see Appendix 3 for details). The interviews were organized as group interviews in which multiple family members participated together. In total, 18 family members were interviewed (N = 18; nchildren = 6, nsiblings = 3, nparents = 9) . Lastly, a questionnaire consisting of five statements to rate the artifacts on a scale from 1 (strongly disagree) to 10 (strongly agree) was presented (see Appendix 4 for details). In total, 24 family members filled out the questionnaires (N = 24; nchildren = 6, nsiblings = 7, nparents = 11) We aimed to use this quantitative data to corroborate the results from the qualitative analysis. However, due to the limited contribution of these quantitative findings, we decided to exclude these measures from the analysis.

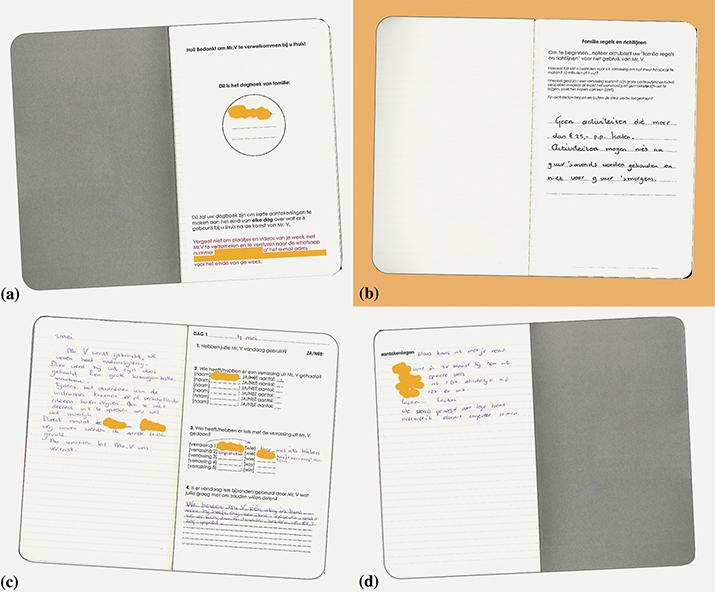

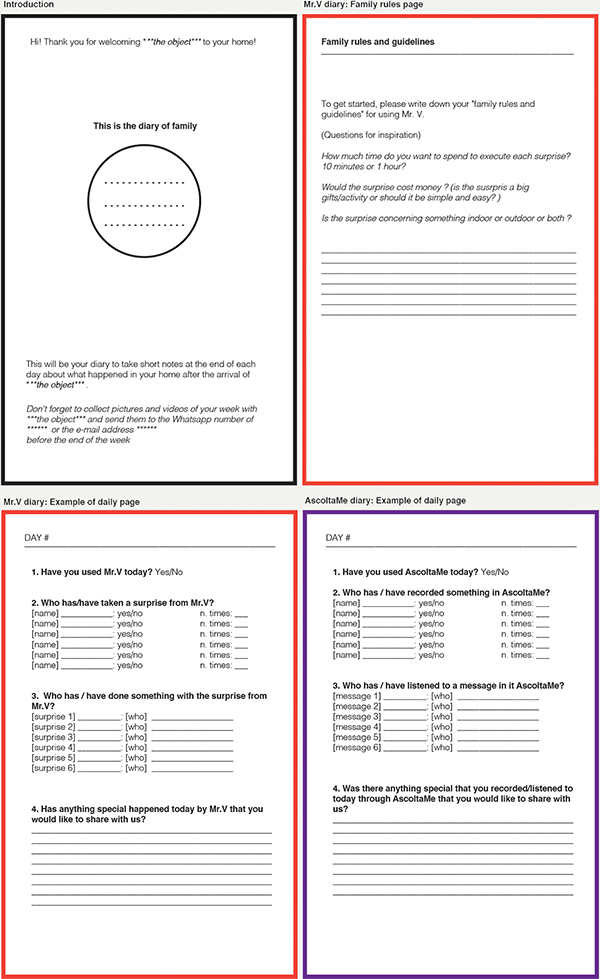

Figure 4. Diary structure: (a) 1 introduction-page with family’s name, (b) 1 rules-page available only for families using Mr.V,
(c) example of one of the 7 daily-pages with questions for the family, and (d) extra space for notes. Copyright © Patrizia D’Olivo.

Data Collection, Processing and Analysis

The data were collected by first and second authors and one assistant researcher (R.G.V.). The interviews were transcribed verbatim by two assistant researchers (M.R. and J.P.), anonymized by the first author and translated into English by a professional translation agency. The translated interviews were analyzed according to each interview question that addressed a different level of experience. The mapping on the wall technique (Sanders & Stappers, 2012) was used to organize the quotes in statements cards, cluster themes and subdivide the clusters in knowledge levels (Ackoff, 1989). Collected pictures and videos were inserted in the statement cards as well as linked to an interpretation following the dual coding approach (Clark & Paivio, 1991) (see Appendix 5 for examples). In total, 421 statements were collected. The statement cards were clustered following a thematic analysis approach in order to emphasize, examine, and record patterns within the data. The first author that conducted the field study and the interviews, and the last author, who wasn’t involved in the fieldwork, collaborated on the interpretation of the data. The second author, who co-conducted the fieldwork and interviews, cross-checked the interpretation of the findings and the clustering for validation.

Results

We will report on the results of the data analysis by summarizing the themes that emerged according to the different questions (i.e., impact on family life, ways of using the objects, objects appreciation, and embedding of the objects in the home context). Participant quotes are presented in italic.

Impact on Family Life

When asked about the effect of the object on their everyday life, parents, siblings, and children described Mr.V as a reminder to engage in quality time, while both Mr.V and AscoltaMe provided them enjoyable and playful experiences with a sense of normality and relieve from the situation they were in.

Parents mentioned that Mr.V helped the, think about different activities to do, and felt like it acted as a co-parent that reminded them to engage in quality time with the whole family. John’s mother said that Mr.V invited to do things that we were not doing often: things and activities that normally would come in second place due to the busy schedule of the hospital. Kevin mainly noticed that Mr.V had the advantage of simplifying the planning of things that were normally postponed. Furthermore, both siblings in Kevin’s and Mary’s family mentioned how Mr.V strengthened their connection with their brother or sister, giving them the motivation to do things together. For instance, Kevin’s sister specified that she and her brother came up with a special surprise for their parents.

AscoltaMe was only used for a short period of time, with only one or two moments of active exploration. The usage was rather different than we expected in the concept design, and did not remind children to share thoughts and emotions to help parents and siblings understanding how they felt. Rachel’s mother mentioned that no new content has been shared within the family and no references to the disease have been made. She also explained how, together with her partner, they played an active role in starting a conversation through AscoltaMe because the children would have not done that by themselves. Simon’s mother hoped that AscoltaMe would have helped to understand Simon better or share more personal things, but this did not happen.

However, both artifacts provided a distraction from the child’s illness. Families felt that Mr.V motivated them in a funny way and provided a new form of entertainment. Parents were relieved to see their children playing and engaging in the activities because, as John’s father mentioned: When the child is sick but still manages to do the usual activities, the child looks healthy. Siblings mentioned that during treatment Mr.V brought great fun and motivation and something to look forward to; since their ill siblings were often really tired, Mr.V stimulated them to do something. The funny messages, jokes and social games triggered by AscoltaMe, even if only briefly, generated lighthearted moment for parents, children and siblings.

Ways of Using the Objects

When asked how they used Mr.V, families explained how they created and received surprises with Mr.V by writing notes, filling the plastic balls and opening them, and how they decided how and when to do the activities that were written down in the surprises. For AscoltaMe, families explained that its use entailed recording messages and listening to them. In general families described both artifacts as being easy to use but requiring some creativity, as in coming up with activities for Mr.V or which messages to record with AscoltaMe.

Families shared that they liked to create surprises with Mr.V because they experienced it as being a special family moment. In Kevin’s family all the surprises have been written down in the same evening when the family was sitting together and in John’s family they made all the surprises in one go at the beginning of the week. Generally, participants explained that every family member contributed to the surprises. However, at times they also found it challenging to come up with so many surprises because as John’s mother mentioned it was difficult to come up with new ideas. The surprises created by the families with Mr.V reflected their specific interests, capabilities and resources in the particular moment of the treatment (Figure 5) (see Appendix 6 for details). For example, in Kevin’s family, food choice and consumption was a major concern during treatment. We found that most of the surprises concerned food preparation and eating. Sammy, instead, had an active and sporty family and their surprises were mainly based on sport and outdoor activities such as playing tennis together or having a walk. Families also mentioned how the experience of receiving surprises generated nice moments that created excitement and expectations for the whole family, as Kevin’s father said: Receiving little presents makes always someone happy. Every family had a personal way of using Mr.V, showing freedom in choosing what to do and what not to. For instance, John’s father said that all the surprises have been dropped and opened, but not all of them were acted upon.

Figure 5. Impression of the collections of surprises:
(a) Kevin’s family, (b) John’s family, (c) Mary’s family, (d) Sammy’s family. Copyright © Patrizia D’Olivo.

For AscoltaMe, Rachel’s mother reported that Rachel used AscoltaMe with her siblings to tell jokes and say funny things, or to make funny noises. She also explained that Rachel and her siblings were using AscoltaMe to make sound while playing a kind of hide and seek and used the device while hiding under a blanket or behind the couch. She further shared the observation that it was fun to play with AscoltaMe but the children did not share any emotional feelings. Moreover, the creation of and listening to the content was real-time rather than asynchronous and children did not leave any messages for the parents to listen to later. As Rachel’s mother mentioned: It was not a natural thing for them to do.

Objects Appreciation

When asked how they understood and appreciated the objects, participants shared their impressions about the associations the objects elicited, how they behaved, and how they experienced different aspects and details of the artifacts’ embodiment.

The two artifacts were described in relation to the associations they elicited. Families used different ways to describe them, as devices, familiar artifacts or in the case of Mr.V, as a kind of character. For example, John’s father described Mr.V as a smart device and as a complete system in which each feature is designed to accommodate different functions but he also noticed its resemblance to a gumball or peanuts machine. Mary’s family considered Mr.V to be a character; a member of the family who entertained them. AscoltaMe was described in similar ways. Rachel’s mother and Leon’s mother talked about AscoltaMe as a technical device. However, Rachel’s mother associated AscoltaMe with a walkie-talkie or a kind of phone, mentioning the old game of the tin-can-telephone. In contrast to Mr.V, nothing was mentioned about AscoltaMe resembling a kind of a character.

Concerning the behavior of the artifacts, Kevin’s father noticed that Mr.V was following a schedule [that] is not predictable and that was funny and surprising. However, parents and children also liked the button that they could press to receive a surprise on request. Mary’s mother said that it felt good to have the possibility to control the device through the button since sometimes a predictable schedule is reassuring. For AscoltaMe, parents felt mostly in control because the basic functions of the device were clear, and the interaction happened through recording and listening; something that was familiar to them. Rachel’s mother explained how she found it logical to press the red button to record a message and pressed the green button to listen to the message (Figure 6).

Figure 6. Rachel’s mother demonstrates how she used AscoltaMe. Copyright © Patrizia D’Olivo.

When reflecting on their embodiment, Mary’s mother appreciated the vintage look of Mr.V and the details, and Kevin’s father describe it as well-crafted and precious. However, the sound that Mr.V made when a ball was dropped, felt disappointing to most of the families as it was described as being too sad in relation to its cheerful look. Parents further mentioned how important the robustness of the artifact was for them. Concerning Mr.V, Kevin’s father pointed out that the glass doesn’t feel safe and Kevin himself mentioned that the small hard plastic containers looked fragile. The two mothers who interacted with AscoltaMe really liked the light effect and Rachel’s mother specified that also the children found the lights attractive but that its white translucent embodiment looked unfinished. Furthermore, they were not that satisfied with the sound emitted by the artifact, which was described as being of low and poor quality by the mother of Simon. Leon’s mother mentioned that she felt hesitant to give it to the child to play at day care since was not looking resistant enough nor safe to be used and left outdoors. Regarding AscoltaMe’s embodiment, Simon’s mother mentioned that the part that needs to be hold in [the] hands is quite heavy for smaller and/or weaker children, and even a little awkward.

Embedding of the Objects in the Home Context

When asked about how the artifacts embedded into the home context, the participants’ comments highlighted three specific themes: the presence of the artifacts at home, the way the artifacts were shared and coordinated amongst family members, and ways in which the use of the objects blended in family routines.

Most parents mentioned that these artifacts nicely fitted into their homes. John’s parents mentioned that Mr.V felt like part of the house. Mr.V was usually placed in the living room or otherwise close to the kitchen (Figure 7a). Families explained that this was the ideal location, as it was a common room for everyone and a place where the sound of the device was easy to hear. Children particularly mentioned that in order to use Mr.V it was necessary to have a spot close to a power socket, which was not always a place that was most accessible for them. They also found it important to have Mr.V in an area in the house where they spend most of their time because it could suddenly attract their attention by producing sounds and displaying lights. AscoltaMe was often placed on the couch and mostly remained there. Rachel’s mother indicated that it was convenient because when you find AscoltaMe on the sofa and you sit down next to it, you will play with it. Leon’s mother explained that the child used it on the sofa (Figure 7b) and in the kitchen; he would have liked to use it to communicate with his brother in different rooms, but the length of the cable did not allow for it.

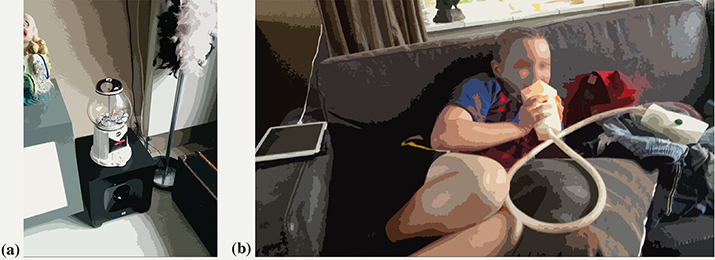

Figure 7. Objects inside the families’ houses:
(a) Mr.V in the living room of John’s family, (b) AscoltaMe on the couch with Leon. Copyright © Patrizia D’Olivo.

Results showed that Mr.V and AscoltaMe encouraged collective activities that included the ill children, their siblings and parents. For Mr.V, family members were sitting down together to write the surprises and in John’s family even the neighbor added some surprises (Figure 8). In Kevin’s family, the use of Mr.V was socially coordinated in a specific way. The child was encouraged to open most of the surprises, and Kevin’s father admitted to have secretly opened the surprises and then put them back into the slot to let the Kevin open them later. AscoltaMe was used by children to play with their siblings or with one of the parents. In Leon’s family, mother and child used AscoltaMe together but Leon also tried to used it with his brother. For Rachel, AscoltaMe became integrated in games she played with her two older sisters.

Figure 8. Screenshots of the video shared by John’s family dealing with a funny challenge proposed by the neighbor through Mr.V: “blowing a candle with the nose”. Copyright © Patrizia D’Olivo.

Since the use of Mr.V was quite elaborate (i.e., requiring different steps such as creating, receiving, and doing activities), participants mentioned that its use required some planning in relation to hospital visits and other family routines. John’s family performed the activities provided by Mr.V randomly during the day whenever possible, while for Mary’s family the preferred time was afternoons between 3 and 5. John’s parents expressed disappointment about Mr.V because some surprises came out when John was not at home or he did not receive anything once back at home. Particularly, family stressed that they would have engaged with Mr.V much more if it could have been used according to their own schedule. For AscoltaMe, parents noted that the children and their siblings used the device mainly during the weekend when they were all together or during the week in the afternoon when they were back from school.

Discussion

In this section we will discuss how the results of the field work have helped us to articulate the qualities of Tactful Objects and account for what we have learned can hinder their tactfulness. We will continue by discussing the contribution of Tactful Objects to research in the healthcare field and other sensitive settings.

Articulating Tactful Objects

Based on the results of the fieldwork Tactful Objects are articulated as objects that establish partnerships and collaborations with people that are inviting and that are appropriate for the settings in which they are embedded. This articulation will be unpacked in more detail below in relation to the empirical findings.

We consider Tactful Objects to make an impact by establishing partnerships that are empowering by providing support in ways that leverage people’s intrinsic motivations and that channels their strengths and capabilities. For example, Mr.V can be described as encouraging partnership in families by reminding them to do things together, by having a sustained presence in the home, and by simplifying planning by suggesting surprise activities to do proactively. At the same time Mr.V created a sense of normality by bringing fun and excitement to the family and distracting them from the severity of the situation. AscoltaMe was found to provide new forms of short-term play, although without being able to encourage family members to talk about their feelings, worries and hopes. By reflecting on these results we came to the conclusion that AscoltaMe could not realize a partnership to the extent that Mr.V did. This could have been caused by two reasons. First, AscoltaMe might have felt patronizing, as it suggests that families have a problem communicating that AscoltaMe must solve. The lack of interest of families to participate in a study with AscoltaMe might substantiate this claim. Second, for the families who did use AscoltaMe, the playful conversations it afforded did not lead to talking about emotionally difficult topics, which might signify a problem in the underlying design goal and strategy.

We further envision Tactful Objects to establish partnerships through collaboration. We observed how interactions that struck a balance between steering users toward desired forms of behavior, yet allowing them freedom, were considered to be empowering. For example, Mr.V proactively dropped a ball containing a surprising activity at an unexpected moment during the day, yet Mr.V did not specify what these activities were, or exactly when or how to carry them out. This was up to the families themselves to decide based on their own needs and circumstances. The interaction with AscoltaMe seemed to be less of a collaboration. AscoltaMe is designed to trigger conversations by translating voice messages into light, and by having the light lingering and pulsating in the tube. Family members could decide what messages to record and when to listen to them (i.e., similar to Mr.V concerning what activities to do and when to do it). However, this pulsating light effect might not have been dominant or outspoken enough to trigger conversation. None of the participants addressed (or perhaps even perceived) this communicative quality of AscoltaMe, demonstrating that the pulsating light-signal might have been too subtle for AscoltaMe to play an active role in a collaboration.

We understood that Tactful Objects should be inviting to use. People’s willingness to use an object can be considered a prerequisite for Tactful Objects to become empowering. When objects are not inviting it becomes nearly impossible to achieve any kind of change since prolonged engagements will be difficult to establish. For example, the gumball machine embodiment chosen for Mr.V generated pleasant memories in parents and raised curiosity in children. Additionally, the human-like characteristics of Mr.V expressed by its anthropomorphic cues led to the perception of the object as being a kind of character that meaningfully unified its pro-active behavior with its purpose, and strengthened the perception of being a co-parent. This underlying metaphor both provided enjoyment and helped people to understand its function and use. Similarly, this happened with AscoltaMe that embodied the metaphor of the tin-can-telephone. However, AscoltaMe was too large to hold for young children and the plastic it was made of felt too fragile. This made people less willing to use it, as it might not have withstood interactions with children in the home context.

Lastly, Tactful Objects need to be appropriate for the setting in which they are embedded and the circumstances in which they are used. Families were sensitive about where objects lived in their homes. For example, Mr.V was placed in the living room for everybody to see, hear, and use. AscoltaMe was mainly placed on the couch in the living room due to the personal conversations it aimed to stimulate. We noticed how the use of the objects was socially coordinated and how the appropriateness of the objects depended upon the extent to which they fostered inclusivity. Mr.V was used by all family members, and although AscoltaMe was designed for two people, it also triggered social play. Families also talked about the particular moments in which they used the objects based on their schedules and availabilities, and mentioned feeling annoyed when objects decided to act at inappropriate moments (e.g., Mr.V dropping balls when nobody was at home) .

In the RtD approach that we have followed, tactfulness was intuitively explored in crafting Mr.V and AscoltaMe. Thus, we can ask how the results of the field study informed these tacit understandings of tactfulness. The use of familiar childhood metaphors in the design of the objects worked out well for this particularly sensitive setting. The metaphor was perceived in both Mr.V and AscoltaMe (i.e., gumball vending machine and tin-can-telephone, respectively) and triggered the associations and feelings that we had anticipated. The expressiveness of both objects that we designed to be both clear and subtle led to different observations. For AscoltaMe, we noticed how the translation of a voice message into light might have been difficult to grasp conceptually (i.e., lack of clarity) and not have enough provocative power to trigger families to have conversations over time (i.e., being too subtle). We noticed how the embodiment of the objects had an impact on their perceived appropriateness and invitingness. The aesthetics and robustness of the objects was designed with the home context in mind. Though it worked well as a decorative object, parents noticed how the glass and metal frame of Mr.V felt unsafe to be used by children. AscoltaMe was ambiguous; the poetic and aesthetic approach of the electronics with plastics was considered less fit to be used as a toy and looked unfished as a decorative object.

Summarizing, Tactful Objects are articulated as objects that enable people to act with respect for their vulnerabilities and circumstances by establishing partnerships and collaborations that are inviting and that are appropriate for the setting in which they are embedded. An integral design approach is required to design Tactful Objects, as these qualities are interdependent. Empowering people in sensitive settings thus require a design strategy that is participatory in the sense that people are given a voice and allowed freedom to act (as individuals and as collectives); while at the same time providing people support that is not experienced as patronizing. When Tactful Objects reflect this participatory approach through their appearance, form and interactivity, we believe these objects can tactfully mediate behaviors and activities within specific contexts of use.

The Contribution of Tactful Objects

Tactful Objects could be an interesting point of departure to design interventions to support engagement and coping for families in this specific healthcare domain (Folkman et al., 1986; Grootenhuis et al., 2012). Research in psychosocial and developmental domain for cancer care can look at this exploration as a way to understand how meaningfully make use of those objects by implementing them in standard interventions to support coping, resilience and family cohesion. Professionals can also think to use Tactful Objects to help families in the hospital or at home, to plan playful assignments that feel less stigmatizing or therapeutic, to indirectly assess the patients or involve neglected siblings (Woodgate, 2006). Furthermore, as observed for the Cellie Cancer Coping kit (Marsac et al., 2012), which was also tested later with sickle-cell disease patients (Marsac et al., 2014), Tactful Objects could be proposed to patients and families dealing with other kind of illnesses. For instance, Tactful Objects could offer support to users dealing with illnesses that require stressful medical procedures and where the patients should be reassured and distracted (Breazeal, 2011; Jibb et al., 2018; Moerman et al., 2019). Furthermore, Tactful Objects could be proposed during medical treatment to engage adolescents, that are considered to be difficult target users (Christiansen et al., 2015) as compared to children or adults.

Tactful Objects highlighted features that can potentially support other groups of users in crisis. Uncertainty, emotional distress, and loss of family cohesion can also be observed during other disruptive life events, such as death, divorce, relocation, etc. (Massimi et al., 2010, 2012; Talhouk et al., 2018). This means that we could consider tactfulness and Tactful Objects for a broader spectrum of application in sensitive settings. For sensitive settings it is mandatory to ensure an empathetic approach (Thieme et al., 2014), to address people’s and researcher’s vulnerabilities (Groeneveld et al., 2018; Vines et al., 2014) and to carefully manage the impact of any form of intervention (McNaney & Vines, 2015). Within the framing of Tactful Objects that we developed in this contribution, we arrived at an articulation of Tactful Objects as an outline or an initial design approach that takes these considerations into account. We continue the discussion by reflecting on the qualities of Tactful Objects that we have articulated in the context of childhood cancer and how they can be generalized to other kinds of sensitive settings.

Embody an appropriate metaphor in a Tactful Object helps in trigger users’ interest and motivation in interacting and using something that has been designed to empower them (Janlert & Stolterman, 1997; Verbeek, 2005). The familiar childhood metaphors of the gumball vending machine and the tin-can-telephone led to the design of particular kinds of objects that could mediate beneficial activities (i.e., engaging in social activities and fostering interpersonal communication) in a way that appealed to curiosity and wonder, and that could intrinsically motivate. Hence, we propose that choosing an appropriate metaphor for Tactful Objects for any sensitive setting must be done consistently with the specific aspects of the context, the users involved, and the kind of support required. This appeals to adopting a practice perspective that meaningfully connect objects and activities as continuously evolving and determined by culture (Kaptelinin & Nardi, 2006; Kuijer & Giaccardi, 2018; Kuutti & Bannon, 2014); and to the understanding of how metaphors can trigger emotional values by embodying personally significant associations (Orth et al., 2018).

We also noticed how enabling collaborations with Tactful Objects involved carefully balancing the behavior of the object in alignment to the support that is required. For example, the objects that we designed could gently nudge or trigger families to act while the families themselves had the freedom to decide when and how to act in response to the objects’ behavior. Thus, the interplay between humans and objects can be described to involve freedoms and efforts. These freedoms and efforts can be composed (and balanced) differently for the type of support that is required (Rozendaal, 2016) and result into different behavior change strategies (Tromp et al., 2011). For instance, a design like the Connected Stones (Nicenboim et al., 2018) facilitates a strategy for the elderly to help them remember activities that involve the use of multiple objects. This particular design can help them remember to take the keys, wallet, and scarf when going out for groceries on a cold day. The series of stones glow in a sequence; once the first pebble positioned close to an object (e.g., the keys) is turned off by shaking it, the second stone that is placed next to another object (e.g., the wallet) starts to glow, and so on. The concept is inspired by the idea of leaving a trail with crumbs around the house. The connected stones afford people freedom in how they can use them because a person can choose which kind of objects the pebbles connect to. The pebbles do not impose much effort in providing direction, specifying actions, or enforcing a particular kind of behavior, but rather provide gentle suggestions by glowing. Diem, instead, is a design example that illustrates how these freedoms and efforts might be balanced differently and can change over time. Diem is a bedside lamp that lulls the person into sleep by dimming the light as the evening progresses (Van Boheemen, 2016). A person is allowed to increase the brightness of the lamp (i.e., allowing freedom in action) but this will require more physical effort in doing so, the later at night it gets. The longer sleeping time is postponed, the more assertive the lamp becomes in its demands. These examples, show how we might approach collaborations with Tactful Objects as ongoing negotiations that requires an understanding of how people may respond to, follow, or wish to overrule the behavior of an object, thus balancing freedoms and efforts in different ways.

Finally, we would like to discuss how designing Tactful Objects requires a deep understanding of the context in its particularities and the sensitivities at play. In designing for families with children with cancer, the invitingess and appropriateness of the designs related to how well the design embedded in the home context; which required understanding the needs of the family members, their everyday routines and characteristics of the setting. This leads to the question of whether we should consider Tactful Objects as being bespoke designs. The work conducted by Kirk and colleagues with the series of Ritual Machines (Chatting et al., 2017; Kirk et al., 2016) shows how it is relevant for a design’s embodiment and behavior to be built “with encoded elements of the family character and values within” so that the objects could fit into the family everyday lives and appeal to what matters most to its members. Similarly the field study with the Family Circles system shows how a particular design intervention aiming to support intra-family communication should fit with families’ own idiosyncratic ways of communicating, and that it should be clear the benefits that it brings to the family compared to their existing ways of communicating (Schatorjé & Markopoulos, 2013). In this regard, AscoltaMe embedded an interesting childhood metaphor, but it did not allow for an idiosyncratic appropriation and didn’t fullfill the needs of the parents in understanding their children’s feelings. A one-size-fits all approach does not align well with the approach of designing Tactful Objects, but it does require careful consideration about how these objects could function and appeal to different people in similar circumstances. This could be achieved through ethnographic work combined with in-situ prototyping (Rozendaal et al., 2019) to understand how Tactful Objects perform within particularly sensitive settings.

Limitations and Future Work

Our findings have been constrained by people’s recollections of their behavior. Using only participants’ recollections might determine the loss of some detail and aspects of the experience (Vermeeren et al., 2010). We noticed how the participants were hesitant to prompt us regularly during the study on a day to day basis by writing notes in the diary and taking photographs while using the objects. Our participants perceived filling out the diary to be an additional task, and most of them felt uneasy about sharing personal pictures and videos due to privacy issues. Scholars have pointed out that reporting or collecting ethnographic data through diaries and pictures is not always ideal (Jorgensen, 2015; Vines et al., 2013). Therefore, in future studies we should think about ways in which we can obtain insights without burdening participants in their difficult circumstances. For example, we might consider experience-sampling techniques that are fun and easy to use for children and adults (Rozendaal et al., 2018), or by allowing the objects themselves to collect use information in real-time (Cila et al., 2017; Giaccardi et al., 2016a) in an ethical and transparent manner (Gaver et al., 2007).

The results were also influenced by the two prototypes that we developed. For AscoltaMe, the use of standard ArduinoTM based electronic components didn’t allow it to be as light and small as we intended. This negatively affected its embodiment, especially for small children, because it was too large to hold and too heavy to play with. Applied mechatronics and computation sometimes negatively influenced Mr.V. From time to time a ball got stuck in the machine, requiring human intervention to free it up. Exploring the tactful behavior of objects in daily life requires the use of prototypes with an even higher level of engineering sophistication. Future work should focus on reaching this level of robustness in form of research products, which Odom and colleagues (Odom et al., 2016) describe as products used in longitudinal research carefully fine-tuned on their appearance, behavior and interactivity before actually being deployed in the field.

We acknowledge that the one-week deployment of the prototypes in families’ homes limits any generalizations about the long-term embedding of Tactful Objects. To measure the long-term impacts of the intervention on well-being and quality of life of the families involved, longitudinal approaches are warranted (Karapanos, 2013). However, due to the sensitive context and the necessity to be granted permission from a Medical Ethical Committee to recruit participants undergoing treatment, we encountered limitations that we had to respect. Still, our results report more than an initial excitement from the families about the objects that were deployed and could pass beyond the trajectory of novelty (Gaver et al., 2007). For example, we observed how people’s impressions of the artifacts were constructed after multiple use-episodes, and how people coordinated their use within the complex daily schedules of the family. Despite these limitations, we think that our study allowed us to investigate Tactful Objects intended for a vulnerable group of people who are often difficult to engage and approach (Vines et al., 2013, 2014).

The articulation of Tactful Objects presented in this study could be used further as a design framework by engaging in new design activities that take this articulation as a starting point. For instance, researchers could create new prototypes that could serve as physical hypotheses about tactfulness (informing their embodiment and expressive capabilities), and that could be assessed on their empowering qualities over a longer period of time. The Tactful Objects perspective could open up a new design space to imagine and create intelligent objects that express intent with sensitivity and tact. Future Tactful Objects could be designed as tactful data-enabled agents (Giaccardi et al., 2016b; Rozendaal et al., 2019) capable to sense people’s needs and vulnerabilities (Vines et al., 2013, 2014), and to mediate complex interactions among group of users in sensitive settings (Kirk et al., 2016; Schatorjé & Markopoulos, 2013). Therefore, our next step will look into expanding the sensing capabilities of Tactful Objects. This will allow us to understand how they might attune to and adapt to the needs of people and demands of the situation in a semi-autonomous fashion. We look forward to expanding our understanding of Tactful Objects, as this will ultimately help designers in creating interactive artifacts that are sensitive, supportive, and respectful for people in challenging life circumstances.

Conclusion

In this paper we have introduced Tactful Objects as a design perspective on interactive artifacts that empower people in sensitive settings. We have explained how childhood cancer is a disruptive life event that affects the children and their families as a whole by causing uncertainty, emotional distress, and break-up their family routines, and which becomes a sensitive setting to design for. We have presented two interactive artifacts that were designed to empower families dealing with childhood cancer in tactful ways. The first, Mr.V, is an interactive dispenser to stimulate social activities in the family. The second, AscoltaMe, is a kind of walkie-talkie to enhance communication between family members. We evaluated these two interactive artifacts during a one-week field study with eight families in treatment for childhood cancer. The results provided insights into how families experienced these artifacts concerning their impact, use, appreciation and embedding in the context of the home. Based on these findings we conclude that Tactful Objects enable people to act with respect for their vulnerabilities and circumstances by establishing partnerships and collaborations that are inviting and that are appropriate for the setting in which they are embedded. We have then reflected on the possible contribution of Tactful Objects for research in healthcare and for design in other sensitive settings.

Acknowledgments

The work presented in this paper is part of multidisciplinary project named Meedoen = Groeien!. This research is a collaboration among the Dutch Rehabilitation Fund, the Princess Máxima Center for Pediatric Oncology, and Delft University of Technology. The Dutch Friends Lottery finances this project. The study was conducted with permission of, and in accordance with, the regulations of the Medical Ethical Committee of the University Medical Center Utrecht (METC-protocol number: 16/664). We would like also to thank: Jet Peek, Minon Rosier and Rubi G. Vermeulen from Delft University of Technology for their contribution in the data collection an processing; Martin C. Havranek and Richard Bekking from ID-Studiolab (Delft University of Technology) for their indispensable technical supervision in developing the prototypes; Gijs Leijdekkers for his photographic support; and all the families that participated in the study and shared their precious time with us and our designs.

Endnotes

  1. 1. For the sake of clarity, second, third and fourth author enabled and facilitated the recruitment process of the families in treatment within the pediatric oncology center of reference. First and second author conducted the fieldwork. First and last author dealt with the data analysis, and second author validated the analysis. Third, fourth and last author supported in theoretically frame the research respectively within the healthcare and design domains. First and last author have a background in product and interaction design respectively. Second, third and fourth author have a background in child development and psychology respectively
